產品簡介輕便小巧、操作簡單、開放性的完整作業系統Trimble® R12i——生產力的一個新的角度。
采用 Trimble ProPoint? GNSS 技術和新的 Trimble TIP? 傾斜補償。

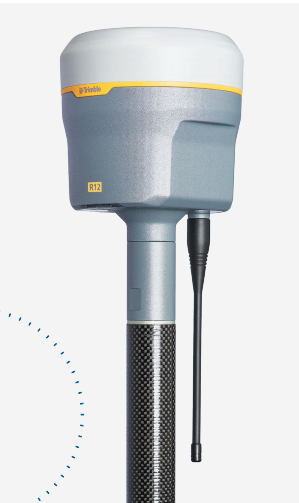

Trimble R12i GNSS接收器介紹
Trimble R12i 提供更好的 GNSS 性能、速度和準確性，以更好的方式提高您的生產率。
憑借在具有挑戰性的 GNSS 條件下的性能提高以及基于 IMU 的強大傾斜補償功能，您無需擔心桿的水平調整，您將比預期的更快地完成更多工作。
新的 Trimble TIP 傾斜補償技術
1.基于 IMU 的傾斜補償；
基于免校準的慣性測量單元的傾斜補償，抗電磁干擾。
2.難以到達的接入點；
輕松獲得對障礙點的準確測量，例如建筑物和物業的角落或公用事業倒置。
3.遠離傷害；
安全地捕獲危險位置（如開挖邊沿或道路）上的點。
4.內置自動完整性監控；
實時 IMU 異常檢測和警報對您的系統完全信任。
5.注意極尖而不是氣泡；
屏幕放樣說明將極尖直接引導到設計點。測量點時無需重復調整極尖位置并重新調平接收器。
Trimble® ProPoint GNSS 技術
接近天篷的 RTK 和 Trimble RTX 性能更好，提高樹冠附近的準確性、可靠性和生產率。
在具有挑戰性的環境中，性能提高了30％以上
·準確：提供可重復結果的精確解決方案。
·可靠：Trimble Access 中的實時錯誤估計功能可以使測量員獲得授權。
·高產的：更快的收斂意味著更少的時間花費在現場測量點上。
*在具有挑戰性的 GNSS 環境（如樹木附近和樹木之中以及建筑環境）中，使用 Trimble R10-2 進行的面對面測試中，Trimble R12i 接收機在各種因素（包括完成調查的時間）方面的性能至少提高了30％精度水平，位置精度和測量可靠性。
Trimble R12i 功能一覽
·Trimble ProPoint GNSS 技術突破性的信號管理功能利用 GNSS 信號和 Trimble 接收器硬件的新發展，在退化的 GNSS 條件下具有卓越的性能。
·Trimble TIP 傾斜補償技術
基于慣性測量單元（IMU）的傾斜補償，可精確布置和測量點，而無需精確調平桿。
·天寶 CenterPoint 的 RTX® 改正服務
無需基站或 VRS 網絡即可在全球范圍內提供 RTK 級別的精度。
·Trimble 360??技術
672個通道，支持現有所有可用的 GNSS 信號，并改善了對干擾和欺騙信號的保護。
·天寶® 彈力豐盈技術
通過連續的 RTK 覆蓋使您在無線電和蜂窩黑點中工作。
·增強現實就緒
通過 Trimble TSC7 控制器上的 Trimble SiteVision ?，使地理空間數據栩栩如生，并在現實世界中可視化3D數據。
8毫米H / 15毫米V：實時運動精度
Android 和 iOS：BYOD 工作流程的平臺支持
2厘米H / 5厘米V：CenterPoint RTX 精度
672：GNSS頻道
接收與發送：寬帶 UHF 無線電，最高 2 瓦
集成：GNSS 天線
創建完整的 Trimble R12i 解決方案
與運行 Trimble Access 的一個堅固的 Trimble 外控制器對在 Trimble R12I ? 2020 軟件領域的一個完整的工作流程解決方案。回到辦公室，使用TBC 處理數據以創建高質量的可交付成果。
Trimble® Inertial Platform? (TIP) 技術?；?IMU的免校準防磁傾斜補償，用于地形測量和放樣。
? Trimble ProPoint? GNSS 定位引擎，為在充滿挑戰的 GNSS 環境中提高精度與效率而設計。
? 672 通道解決方案具有 Trimble 360 衛星跟蹤技術
? 通過衛星或 IP，CenterPoint® RTX 改正服務在全世界提供快速、RTK 等級的精度
? Trimble xFill® 斷點續測技術
? 為 Trimble Access? 外業軟件而優化
? 支持 Android? 和 iOS 平臺
? 藍牙®、Wi-Fi 數據連接
? 軍標規格的堅固型設計和 IP67 評級
? 外形結構符合人體工程學特點
? 電池帶內置狀態指示燈
? 6 GB 內存
? 通過 Trimble SiteVision? 支持增強現實功能性能規格GNSS測量通過 Trimble ProPoint GNSS 技術實現星座不可知的靈活信號跟蹤，在挑戰性環境1 中改善了定位以及慣性測量。借助 Trimble TIP? 技術，基于 IMU 的傾斜補償提高了測量、放樣的生產率和可追溯性先進的 Trimble 定制測量 GNSS 芯片，具有 672 個通道Trimble xFill 技術能夠減少因無線電信號中斷而引起的停機時間信號同步跟蹤···········································································································GPS：L1C、L1C/A、L2C、L2E、L5····································································································································GLONASS：L1C/A、L1P、L2C/A、L2P、L3····································································································································SBAS (WAAS、EGNOS、GAGAN、MSAS)：L1C/A、L5····································································································································Galileo：E1, E5A, E5B, E5 AltBOC, E62····································································································································北斗：B1、B1C、B2、B2A、B2B、B3····································································································································QZSS：L1C/A, L1S, L1C, L2C, L5, L6····································································································································NavIC(IRNSS)：L5····································································································································L波段：Trimble RTX? 校正高于 1616 MHz 的銥濾波，天線離銥發射器最遠可以20米低于1510 MHz 的 LTE 濾波，天線可以離 LTE 小區塔最遠100米數字信號處理器(DSP)技術，用于檢測和恢復欺騙的 GNSS 信號高級接收機自主完整性監測(RAIM)算法，用于檢測和拒絕有問題的衛星測量數據，以提高位置質量改進了對錯誤星歷數據的保護定位速率···················································································································1 Hz、2 Hz、5 Hz、10 Hz 和 20 Hz定位規格3靜態 GNSS 測量高精度靜態水平···························································································································3 mm + 0.1 ppm RMS垂直···························································································································3.5 mm + 0.4 ppm RMS靜態和快速靜態水平···························································································································3 mm + 0.5 ppm RMS垂直···························································································································5 mm + 0.5 ppm RMS實時動態測量單基線<30 km水平···························································································································5 mm + 0.5 ppm RMS垂直···························································································································15 mm + 1 ppm RMS網絡RTK4水平···························································································································8 mm + 0.5 ppm RMS垂直···························································································································15 mm + 0.5 ppm RMSRTK啟動時間(對于指定的精度)5 ········································································2 ～ 8 秒鐘TRIMBLE INERTIAL PLATFORM（TIP）技術TIP 補償測量6水平···························································································································RTK + 5 mm + 0.4 mm/° 傾斜（最大30°）RMSIMU 完整性監測器漂移監測··················································································································溫度，老化和沖擊TRIMBLE RTX 校正服務CenterPoint RTX7水平··························································································································2 cm RMS垂直··························································································································5 cm RMS在 Trimble RTX 快速區域中達到指定精度的 RTX 收斂時間·······················< 1 分鐘在非 RTX 快速區域中達到指定精度的 RTX 收斂時間···································< 15 分鐘達到指定精度的 RTX QuickStart 收斂時間····················································< 1 分鐘TRIMBLE xFILL8水平·························································································································RTK9 + 10 mm/分鐘 RMS垂直·························································································································RTK9 + 20 mm/分鐘 RMSTRIMBLE xFILL PREMIUM8水平·························································································································3 cm RMS垂直·························································································································7 cm RMS碼差分 GNSS 定位水平·························································································································0.25 m + 1 ppm RMS垂直·························································································································0.50 m + 1 ppm RMSSBAS10 ·················································································································一般 <5 m 3DRMS硬件物理性能尺寸(W×H) ··········································································································11.9 cm x 13.6 cm重量·························································································································1.12 kg，含內置電池和帶 UHF 天線的內置電臺·································································································································3.95 kg，包括以上所有項，再加對中桿、Trimble TSC7控制器和支架溫度11工作························································································································ -40 °C ～ +65 °C存放························································································································ -40 °C ～ +75 °C濕度·································································································································100%，凝結防護等級·································································································································IP67 防塵，臨時浸入水下1米不損壞沖擊和振動(經過測試符合下列環境標準)沖擊·························································································································不工作時：從2米高測桿上跌落到水泥地面不損壞。·································································································································工作時：通過了40 G、10毫秒鋸齒波沖擊試驗振動·························································································································MIL-STD-810F，F(xiàn)IG.514.5C-1電氣性能電源：11到24伏直流外接電源，端口1和端口2帶過壓保護(Lemo 7針)可充電可拆取的7.4V - 3.7Ah智能鋰電池，帶LED狀態指示器在 RTK 流動站模式下，帶內置電臺的耗電量是4.2 W12內置電池工作時間13：450 MHz 僅接收選項·························································································6.5小時450 MHz 接收/發射選項(0.5 W) ····································································6.0小時450 MHz 接收/發射選項(2.0 W) ····································································6.5小時蜂窩移動接收選項································································································6.0小時通信和數據存儲串口3線串口(Lemo 7針)USB v2.0支持?jǐn)?shù)據下載和高速通信無線電調制解調器完全集成和密封的 450 MHz 寬帶接收機/發射機，頻率范圍為 403 MHz 至 473 MHz，支持 Trimble、Pacific Crest 和 SATEL無線電協議：發射功率·················································································································2 W范圍··························································································································一般3–5 km/最佳10 km14蜂窩移動15集成型 3.5G 調制解調器、HSDPA 7.2 Mbps(下載)、GPRS 多時隙12類、EDGE 多時隙12類、Penta-band UMTS/HSDPA(WCDMA/FDD) 800/850/900/1900/2100 MHz、Quad-band EGSM 850/900/1800/1900MHz、GSM CSD、3GPP LTE藍牙完全集成的全密封 2.4GHz 通信端口(藍牙)16Wi-Fi802.11 b,g,訪問點和客戶端模式，WPA/WPA2/WEP64/WEP128 加密輸入/輸出端口串口、USB、TCP/IP、IBSS/NTRIP、藍牙數據存儲6 GB內存數據格式CMR+、CMRx、RTCM2.1、RTCM2.3、RTCM3.0、RTCM3.1、RTCM3.2輸入和輸出24NMEA輸出，GSOF、RT17和RT27輸出，1PPS輸出WEBUI提供簡單的配置、操作、狀態和數據傳輸可通過Wi-Fi、串口、USB和藍牙訪問支持的控制器和外業軟件運行受支持APPs的Trimble TSC7、Trimble T10、Trimble T7、Android 和 iOS 設備Trimble Access 2020.10或以后版本增強現實通過在Trimble TSC7控制器上運行的Trimble SiteVision支持室外增強現實功能
天寶Trimble R12i GNSS RTK測量系統
